Home Professional equipment Laboratory equipment Spectrophotometer, YS4580 45/0 Grating Spectrophotometer with 20 mm Aperture for Traffic Signs

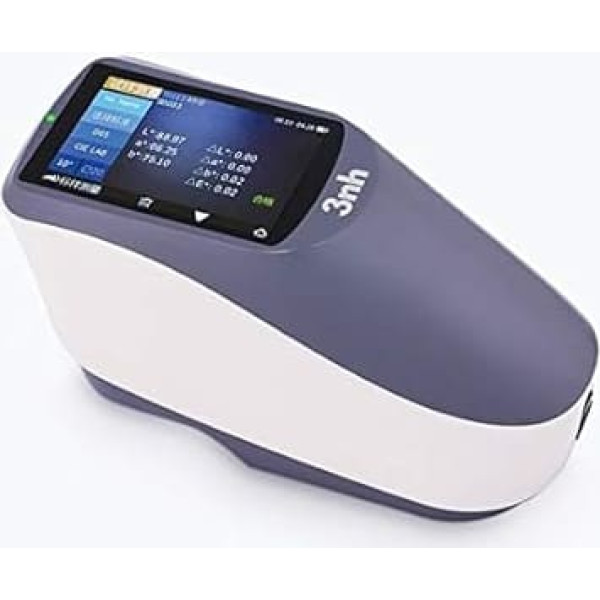

Spectrophotometer, YS4580 45/0 Grating Spectrophotometer with 20 mm Aperture for Traffic Signs

Spectrophotometer, YS4580 45/0 Grating Spectrophotometer with 20 mm Aperture for Traffic Signs

Availability: 10

ID: 7693982

Product Code: ANEB0F9PG489MT

4,751.34€

(Ex Tax: 3,926.72€)

Informacija

Description

Related products

Description

Wavelength range: 400~700nm Integration ball size: 48 mm 20 mm aperture special construction for traffic signs, it is used to measure the brightness factor and colour coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB / T 18833 standard colours. It can manually adjust the rectangular tolerance of polygons. It is used for accurate analysis and transfer of laboratory colour, also for fluorescence sample colour measurement. Wear in varnishes, paints, textiles, clothing, printing and dyeing, printing etc. industry for colour transfer and quality control. › See more product details; Product description Model YS4580 45/0 Grating Spectrophotometer with 20mm Aperture Lighting/observation system 45/0 (45 ring-shaped lighting, vertical viewing); Complies with CIE No.15, GB / T 3978, GB 2893, GB / T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7, GB 2893, GB / T 18833 The integration of sphere size Φ48 mm. Light source combines LED light, UV light. Spectral separator concave grid Detector 256 Image Element Double Array CMOS Image Sensor Wavelength range: 400 ~ 700 nm. Wavelength pitch 10nm Half bandwidth 10nm Reflectance range 0 ~ 200%. Measuring aperture diameter 20 mm. Colour space CIE LAB, XYZ, Yxy, LCH CIE LUV, Hunterlab, βxy Colour difference formula & Delta; E * ab, & Delta; E * uv, & Dgr; E * 94, & Delta; E * CMC (2: 1), & Delta; E * cmc (1: 1), & Dgr; E * 00, & Delta; E (Hunter) Other colourimetric index WI (ASTM E313, CIE / ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), TI (ASTM E313, CIE / ISO), MI (metameric index), colouring authenticity, colour fastness, colour strength, opacity, support colourimetric polygon tolerance. Observation angle 2°/10°. Illuminant D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/ U30). Display data spectrogram/values, colour values, colour difference values/graphics, passport/fail-result, colours offset. Measuring time over 1.5 seconds. Spectral reflection repeatability: standard deviation 0.1% (400nm to 700nm: within 0.2%) Chromaticity value: within & Delta; E * from 0.04 (if a white calibration plate is measured 30 times at intervals of 5 seconds after white calibration) Inter-instrument error within AE * from 0.2 (average for 12 BCRA Series II colour tiles). Measuring mode single measurement, average value measurement (2-99). Size (L x W x H) x 184 77 x 105 mm. Weight: approx. 600 g. Power source Li-ion battery. 5000 measurements within 8 hours. disp; Product description Model YS4580 45/0 Grating Spectrophotometer with 20mm Aperture Lighting/observation system 45/0 (45 ring-shaped lighting, vertical viewing); Complies with CIE No.15, GB / T 3978, GB 2893, GB / T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7, GB 2893, GB / T 18833 The integration of sphere size Φ48 mm. Light source combines LED light, UV light. Spectral separator concave grid Detector 256 Image Element Double Array CMOS Image Sensor Wavelength range: 400 ~ 700 nm. Wavelength pitch 10nm Half bandwidth 10nm Reflectance range 0 ~ 200%. Measuring aperture diameter 20 mm. Colour space CIE LAB, XYZ, Yxy, LCH CIE LUV, Hunterlab, βxy Colour difference formula & Delta; E * ab, & Delta; E * uv, & Dgr; E * 94, & Delta; E * CMC (2: 1), & Delta; E * cmc (1: 1), & Dgr; E * 00, & Delta; E (Hunter) Other colourimetric index WI (ASTM E313, CIE / ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), TI (ASTM E313, CIE / ISO), MI (metameric index), colouring authenticity, colour fastness, colour strength, opacity, support colourimetric polygon tolerance. Observation angle 2°/10°. Illuminant D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/ U30). Display data spectrogram/values, colour values, colour difference values/graphics, passport/fail-result, colours offset. Measuring time over 1.5 seconds. Spectral reflection repeatability: standard deviation 0.1% (400nm to 700nm: within 0.2%) Chromaticity value: within & Delta; E * from 0.04 (if a white calibration plate is measured 30 times at intervals of 5 seconds after white calibration) Inter-instrument error within AE * from 0.2 (average for 12 BCRA Series II colour tiles). Measuring mode single measurement, average value measurement (2-99). Size (L x W x H) x 184 77 x 105 mm. Weight: approx. 600 g. Power source Li-ion battery. 5000 measurements within 8 hours. disp; Model YS4580 45/0 Grating Spectrophotometer with 20mm Aperture Lighting/observation system 45/0 (45 ring-shaped lighting, vertical viewing); Complies with CIE No.15, GB / T 3978, GB 2893, GB / T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7, GB 2893, GB / T 18833 The integration of sphere size Φ48 mm. Light source combines LED light, UV light. Spectral separator concave grid Detector 256 Image Element Double Array CMOS Image Sensor Wavelength range: 400 ~ 700 nm. Wavelength pitch 10nm Half bandwidth 10nm Reflectance range 0 ~ 200%. Measuring aperture diameter 20 mm. Colour space CIE LAB, XYZ, Yxy, LCH CIE LUV, Hunterlab, βxy Colour difference formula & Delta; E * ab, & Delta; E * uv, & Dgr; E * 94, & Delta; E * CMC (2: 1), & Delta; E * cmc (1: 1), & Dgr; E * 00, & Delta; E (Hunter) Other colourimetric index WI (ASTM E313, CIE / ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), TI (ASTM E313, CIE / ISO), MI (metameric index), colouring authenticity, colour fastness, colour strength, opacity, support colourimetric polygon tolerance. Observation angle 2°/10°. Illuminant D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/ U30). Display data spectrogram/values, colour values, colour difference values/graphics, passport/fail-result, colours offset. Measuring time over 1.5 seconds. Spectral reflection repeatability: standard deviation 0.1% (400nm to 700nm: within 0.2%) Chromaticity value: within & Delta; E * from 0.04 (if a white calibration plate is measured 30 times at intervals of 5 seconds after white calibration) Inter-instrument error within AE * from 0.2 (average for 12 BCRA Series II colour tiles). Measuring mode single measurement, average value measurement (2-99). Size (L x W x H) x 184 77 x 105 mm. Weight: approx. 600 g. Power source Li-ion battery. 5000 measurements within 8 hours. disp
