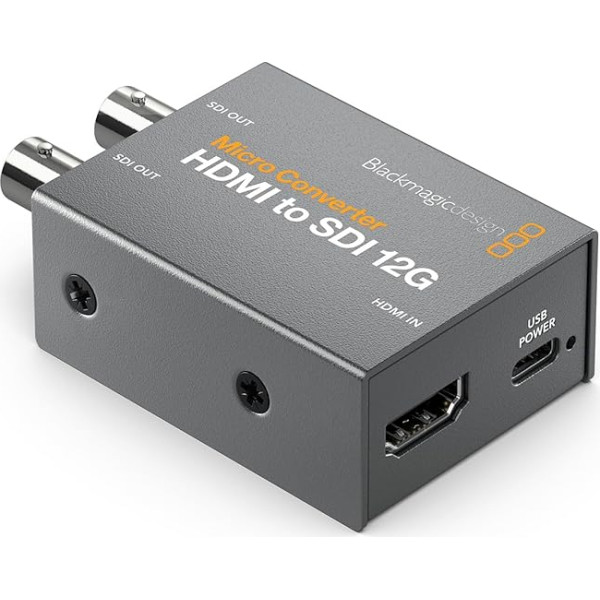

HDMI to SDI 17 point LUT With power supply › See more product details; Product description Blackmagic Micro Converter HDMI to SDI 12G PSU The worlds smallest converter for HDMI to 12G-SDI in broadcast quality. The Blackmagic Micro Converter HDMI to SDI 12G is a tiny converter in broadcast quality and ideal to connect HDMI cameras and computers to professional SDI equipment. Two 12G-SDI outputs are provided, selectable in Level A or Level B 3G-SDI signal formats. Equipped with full-size HDMI connectors and professional 12G-SDI connectors, the micro converters works in all NTSC, PAL, 720p, 1080p, 1080i and 2160p rates including 4kp24/47.95/48 DCI. The converter can be powered via the USB port of Laptops or mobile phone batteries. Connections SDI video output: automatic adaptation to HDMI input. HDMI 2.0 video output: 1 type A. SDI rates: 270 Mbit; 1.5 G; 3 G; 6 G; 12 G. Multirate support: automatic detection of SD, HD, 2K, Ultra HD and 4K Updates, configuration and power supply: USB type C. Reclocking: yes. Copy protection: Please note that no copy-protected HDMI sources can be recorded via the HDMI input. Always learn about copyrights before recording or distributing content Settings control: through MacOS X or Windows utility via USB. Operating Systems: Mac Catalina 10.15, Mac Big Sur 11.1 or higher. Windows 10, 64 bit. Software: Software upgrade via USB. Power: Power consumption: max. 4 watts. Operating voltage range: 4.40-5.25V DC Physical specifications: Dimensions: 76.5 x 45.8 x 24.8 mm. Weight: 150 g; Product description Blackmagic Micro Converter HDMI to SDI 12G PSU The worlds smallest converter for HDMI to 12G-SDI in broadcast quality. The Blackmagic Micro Converter HDMI to SDI 12G is a tiny converter in broadcast quality and ideal to connect HDMI cameras and computers to professional SDI equipment. Two 12G-SDI outputs are provided, selectable in Level A or Level B 3G-SDI signal formats. Equipped with full-size HDMI connectors and professional 12G-SDI connectors, the micro converters works in all NTSC, PAL, 720p, 1080p, 1080i and 2160p rates including 4kp24/47.95/48 DCI. The converter can be powered via the USB port of Laptops or mobile phone batteries. Connections SDI video output: automatic adaptation to HDMI input. HDMI 2.0 video output: 1 type A. SDI rates: 270 Mbit; 1.5 G; 3 G; 6 G; 12 G. Multirate support: automatic detection of SD, HD, 2K, Ultra HD and 4K Updates, configuration and power supply: USB type C. Reclocking: yes. Copy protection: Please note that no copy-protected HDMI sources can be recorded via the HDMI input. Always learn about copyrights before recording or distributing content Settings control: through MacOS X or Windows utility via USB. Operating Systems: Mac Catalina 10.15, Mac Big Sur 11.1 or higher. Windows 10, 64 bit. Software: Software upgrade via USB. Power: Power consumption: max. 4 watts. Operating voltage range: 4.40-5.25V DC Physical specifications: Dimensions: 76.5 x 45.8 x 24.8 mm. Weight: 150 g; Blackmagic Micro Converter HDMI to SDI 12G PSU The worlds smallest converter for HDMI to 12G-SDI in broadcast quality. The Blackmagic Micro Converter HDMI to SDI 12G is a tiny converter in broadcast quality and ideal to connect HDMI cameras and computers to professional SDI equipment. Two 12G-SDI outputs are provided, selectable in Level A or Level B 3G-SDI signal formats. Equipped with full-size HDMI connectors and professional 12G-SDI connectors, the micro converters works in all NTSC, PAL, 720p, 1080p, 1080i and 2160p rates including 4kp24/47.95/48 DCI. The converter can be powered via the USB port of Laptops or mobile phone batteries. Connections SDI video output: automatic adaptation to HDMI input. HDMI 2.0 video output: 1 type A. SDI rates: 270 Mbit; 1.5 G; 3 G; 6 G; 12 G. Multirate support: automatic detection of SD, HD, 2K, Ultra HD and 4K Updates, configuration and power supply: USB type C. Reclocking: yes. Copy protection: Please note that no copy-protected HDMI sources can be recorded via the HDMI input. Always learn about copyrights before recording or distributing content Settings control: through MacOS X or Windows utility via USB. Operating Systems: Mac Catalina 10.15, Mac Big Sur 11.1 or higher. Windows 10, 64 bit. Software: Software upgrade via USB. Power: Power consumption: max. 4 watts. Operating voltage range: 4.40-5.25V DC Physical specifications: Dimensions: 76.5 x 45.8 x 24.8 mm. Weight: 150 g
|
