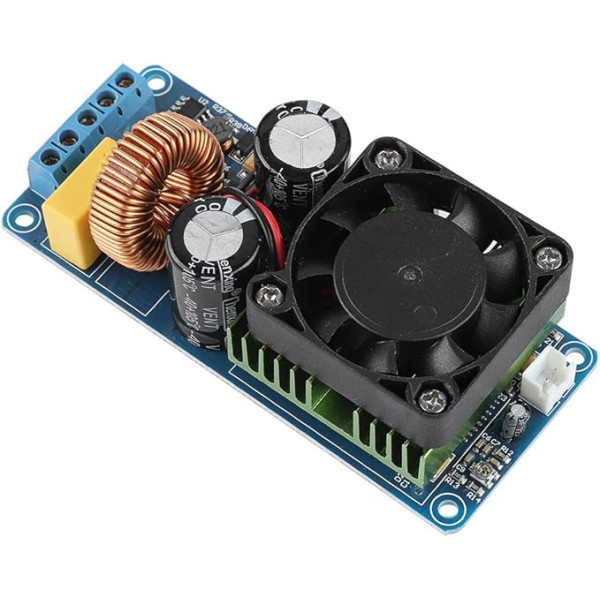

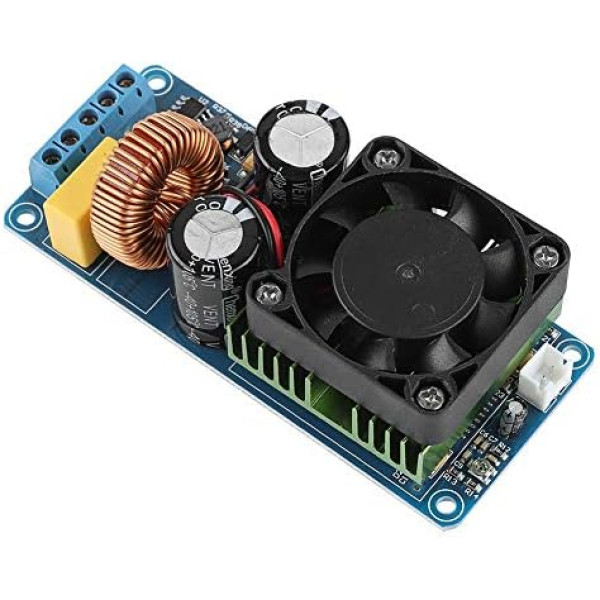

ASHATA IRS2092S Digital Audio Stereo Amplifier Mono Channel Digital Amplifier Class D HiFi Power Board 500 W Digital Audio Amplifier Stereo Board Module

Short circuit protection for output. Output DC bias protection speaker protection. Over temperature protection: The output is switched off when the temperature of the heatsink FET is higher than 100 ° C. This is a pure power amplifier board whose sensitivity of the input signal of 1.5V is effective if your input signal voltage cannot reach this value, you recommend adding a preamp. Mono channel, for 2.0 channel must be bid twice.; Product description Features: 1. Short circuit protection Output DC bias protection speaker protection. 3. Over temperature protection: the output is switched off when the temperature of the heat sink FET is higher than 100 °C. 4.This is a pure power amplifier board whose sensitivity of the input signal of 1.5V is effective if your input signal voltage cannot reach this value, recommend adding a preamplifier. 5. Mono channel, for 2.0 channel must offer twice. Specifications: Power supply: double DC power supply ± 58 ± 70V. The rated output power: 500 W (± 65 V power supply, 4 Ohm load, distortion 10%) Efficiency: > = 90% SNR: 90 dB The total harmonic distortion: 380W (± 65 power 4 ohm speaker, distortion <0.1%) 280 W (± 65 power 8 Ohm speaker, distortion <0.1 %) Frequency range: 20Hz - 20KHz. Speaker: 4-8 Ohm Voltage magnification: 36 times. Input Sensitivity 1.5V (RMS) Output short circuit protection: yes. This output DC bias protection speaker protection: yes. Over temperature protection: Yes, radiator FET temperature higher than 100 °C, turn off output! Use precautions: 1. Nominal supply voltage is ± 65V, ± 58 --- ± 70V range, not over 70V! Positive and negative do not choose incorrectly. 2. Recommended power supply ± 65 V. 3. Recommended 4-8Ω/10-18-inch speaker 4. Check before the current, make sure the wiring is correct. Package contents: 1 x Digital Amplifier; Product description Features: 1. Short circuit protection Output DC bias protection speaker protection. 3. Over temperature protection: the output is switched off when the temperature of the heat sink FET is higher than 100 °C. 4.This is a pure power amplifier board whose sensitivity of the input signal of 1.5V is effective if your input signal voltage cannot reach this value, recommend adding a preamplifier. 5. Mono channel, for 2.0 channel must offer twice. Specifications: Power supply: double DC power supply ± 58 ± 70V. The rated output power: 500 W (± 65 V power supply, 4 Ohm load, distortion 10%) Efficiency: > = 90% SNR: 90 dB The total harmonic distortion: 380W (± 65 power 4 ohm speaker, distortion <0.1%) 280 W (± 65 power 8 Ohm speaker, distortion <0.1 %) Frequency range: 20Hz - 20KHz. Speaker: 4-8 Ohm Voltage magnification: 36 times. Input Sensitivity 1.5V (RMS) Output short circuit protection: yes. This output DC bias protection speaker protection: yes. Over temperature protection: Yes, radiator FET temperature higher than 100 °C, turn off output! Use precautions: 1. Nominal supply voltage is ± 65V, ± 58 --- ± 70V range, not over 70V! Positive and negative do not choose incorrectly. 2. Recommended power supply ± 65 V. 3. Recommended 4-8Ω/10-18-inch speaker 4. Check before the current, make sure the wiring is correct. Package contents: 1 x Digital Amplifier; Features: 1. Short circuit protection Output DC bias protection speaker protection. 3. Over temperature protection: the output is switched off when the temperature of the heat sink FET is higher than 100 °C. 4.This is a pure power amplifier board whose sensitivity of the input signal of 1.5V is effective if your input signal voltage cannot reach this value, recommend adding a preamplifier. 5. Mono channel, for 2.0 channel must offer twice. Specifications: Power supply: double DC power supply ± 58 ± 70V. The rated output power: 500 W (± 65 V power supply, 4 Ohm load, distortion 10%) Efficiency: > = 90% SNR: 90 dB The total harmonic distortion: 380W (± 65 power 4 ohm speaker, distortion <0.1%) 280 W (± 65 power 8 Ohm speaker, distortion <0.1 %) Frequency range: 20Hz - 20KHz. Speaker: 4-8 Ohm Voltage magnification: 36 times. Input Sensitivity 1.5V (RMS) Output short circuit protection: yes. This output DC bias protection speaker protection: yes. Over temperature protection: Yes, radiator FET temperature higher than 100 °C, turn off output! Use precautions: 1. Nominal supply voltage is ± 65V, ± 58 --- ± 70V range, not over 70V! Positive and negative do not choose incorrectly. 2. Recommended power supply ± 65 V. 3. Recommended 4-8Ω/10-18-inch speaker 4. Check before the current, make sure the wiring is correct. Package contents: 1 x Digital Amplifier
