Home Tourism and Fishing Technical devices for outdoor recreation Marine Electronics Yacht Devices YDNG-03 Bidirectional Translator NMEA 0183 for NMEA 2000 or Seatalk NG

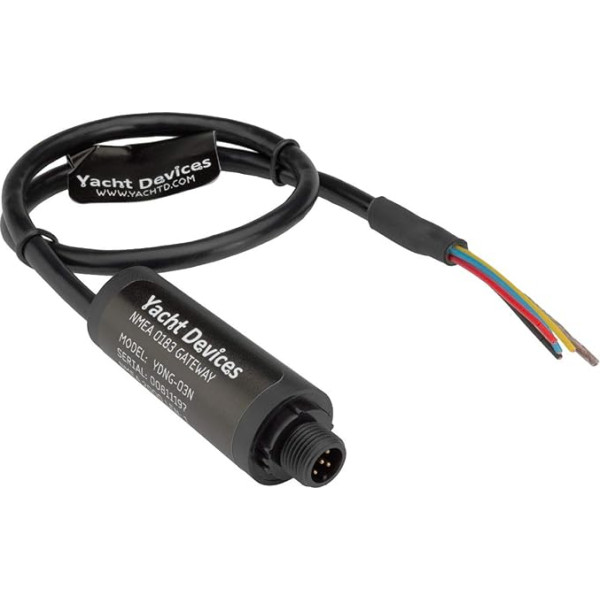

Yacht Devices YDNG-03 Bidirectional Translator NMEA 0183 for NMEA 2000 or Seatalk NG

Availability: Available to order

ID: 5966405

Product Code: ANEB07GPZ1BYVT

364.55€

(Ex Tax: 301.28€)

Informacija

Description

Product images are illustrative

Product conformity check

Related products

Description

The gateway allows you to control Raymarine SeaTalk NG autopilots via NMEA 0183. The flexible filtering system allows you to block NMEA 0183 messages by sentence and NMEA 2000 messages by PGN, sender address or 29-bit message identifier. NMEA 2000 can act as a multiplexer for NMEA 0183 devices Routing between RX and TX lines of the NMEA 0183 port; › See more product details; Product description With the NMEA 0183 gateway, you can connect NMEA 0183 devices to an NMEA 2000 network and vice versa. It features a bi-directional converter with comprehensive support for message types such as AIS and Autopilot. The gateway has an NMEA 2000 connection and an NMEA 0183 port with transmit and receive data lines. The configurable baud rate from 300 to 115200 baud for the NMEA 0183 port allows the connection of AIS (38400 Baud), fast NMEA 0183 multiplexers and PC adapters, and standard NMEA 0183 devices. Both single-ended (RS-232) and differential (RS-422) NMEA 0183 connections are supported. Compatible with PC COM (serial) ports and USB to serial adapters. The device is equipped with a micro SD card slot, which is used for configuration, firmware updates and recording diagnostic data. No special software is required to update or configure the gateway. All you need is a device (laptop or smartphone) with a MicroSD card reader and a simple text editor.; Product description With the NMEA 0183 gateway, you can connect NMEA 0183 devices to an NMEA 2000 network and vice versa. It features a bi-directional converter with comprehensive support for message types such as AIS and Autopilot. The gateway has an NMEA 2000 connection and an NMEA 0183 port with transmit and receive data lines. The configurable baud rate from 300 to 115200 baud for the NMEA 0183 port allows the connection of AIS (38400 Baud), fast NMEA 0183 multiplexers and PC adapters, and standard NMEA 0183 devices. Both single-ended (RS-232) and differential (RS-422) NMEA 0183 connections are supported. Compatible with PC COM (serial) ports and USB to serial adapters. The device is equipped with a micro SD card slot, which is used for configuration, firmware updates and recording diagnostic data. No special software is required to update or configure the gateway. All you need is a device (laptop or smartphone) with a MicroSD card reader and a simple text editor.; With the NMEA 0183 gateway, you can connect NMEA 0183 devices to an NMEA 2000 network and vice versa. It features a bi-directional converter with comprehensive support for message types such as AIS and Autopilot. The gateway has an NMEA 2000 connection and an NMEA 0183 port with transmit and receive data lines. The configurable baud rate from 300 to 115200 baud for the NMEA 0183 port allows the connection of AIS (38400 Baud), fast NMEA 0183 multiplexers and PC adapters, and standard NMEA 0183 devices. Both single-ended (RS-232) and differential (RS-422) NMEA 0183 connections are supported. Compatible with PC COM (serial) ports and USB to serial adapters. The device is equipped with a micro SD card slot, which is used for configuration, firmware updates and recording diagnostic data. No special software is required to update or configure the gateway. All you need is a device (laptop or smartphone) with a MicroSD card reader and a simple text editor.

Product images are illustrative

Product images are for illustrative purposes only, so the information they contain may differ from the product itself. Colors, notes, parameters, sizes, dimensions, functions, and/or any other characteristics of original products may differ from their actual appearance, so please refer to the product description in the product specifications. If you have any questions, please clarify by writing in an e-mail or by filling in the comments window when placing an order.

Product conformity check

In the event that the order is made for a product regulated by law, Anete.lv, after evaluating the legal aspect of the order, has the right to refuse the order.
