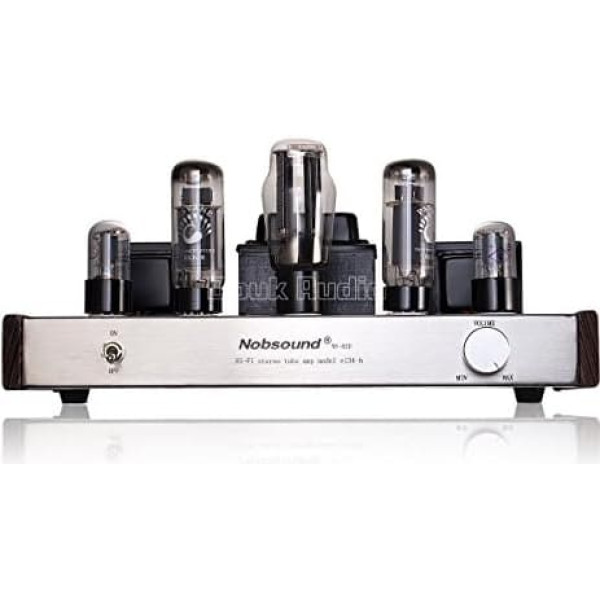

Nobsound® Douk Audio HiFi EL34 Valve Tube Amplifier, Classic 2.0 Channel Stereo Single-Ended Class A Tube Amplifier, Power Amplifier 12W x 2

Availability: Delivery time 3-10 working days Availability 10

ID: 6813789

Product Code: ANEB017SB9SHET

595.32€

(Ex Tax: 492.00€)

Informacija

Description

This is our Douk audio brand Nobsound, the most cost-effective EL34 tube amplifier, take it home and it will give you a big surprise. Rated output power: triode connected 8Wx2 (default) / standard connection 12Wx2 Output impedance: 4Ω, 8Ω, suit for about 10-100w 88db (>=) speakers Rectifier tube: 5Z3P (Class J military level tube) / preamp tubes: 6N9P × 2 (Class J military level tube) / Power tubes: EL34B × 2 Dimensions (W x H x D): 380 × 160 × 230 mm / Weight: about 9 kg › See more product details; Product description Basic technical parameters: Rectifier: 5Z3P (Class J military level tube). Preamp tubes: 6N9P × 2 (Class J military level tube). Power tubes: EL34B × 2. Rated output power: triode connected 8 W x 2 (default), standard connection 12 W x 2. Frequency response: 20 Hz - 25 kHz. Total power consumption: 115 W. Output transformer: import Japanese Z11 0.35 mm (22 x 45/50), very important to provide sufficient power. Total harmonic distortion: 1% (1 kHz). Input sensitivity: 500 mV - 2000 mV. Input impedance: 100 KΩ. Output impedance: 4Ω, 8Ω, suit for about 10-100w 88db (>=) speakers SNR: 88 dB. Dimensions (W x H x D): 380 x 160 x 230 mm. Weight: about 9 kg. Product technology and materials All tubes are military level. Rectifier and voltage tube are Seventies Class J military level tube. Special HIFI levels capacitors: German WIMA red grade fever no electrodes capacity. Cathode capacity: Philips audio-specific. All high-precision metal film resistors rings. CLC filter inductor. Power output transformer is handmade. Optimised routing and extremely low noise. Package: 1 x tube amplifier. 1 x power cord.; Product description Basic technical parameters: Rectifier: 5Z3P (Class J military level tube). Preamp tubes: 6N9P × 2 (Class J military level tube). Power tubes: EL34B × 2. Rated output power: triode connected 8 W x 2 (default), standard connection 12 W x 2. Frequency response: 20 Hz - 25 kHz. Total power consumption: 115 W. Output transformer: import Japanese Z11 0.35 mm (22 x 45/50), very important to provide sufficient power. Total harmonic distortion: 1% (1 kHz). Input sensitivity: 500 mV - 2000 mV. Input impedance: 100 KΩ. Output impedance: 4Ω, 8Ω, suit for about 10-100w 88db (>=) speakers SNR: 88 dB. Dimensions (W x H x D): 380 x 160 x 230 mm. Weight: about 9 kg. Product technology and materials All tubes are military level. Rectifier and voltage tube are Seventies Class J military level tube. Special HIFI levels capacitors: German WIMA red grade fever no electrodes capacity. Cathode capacity: Philips audio-specific. All high-precision metal film resistors rings. CLC filter inductor. Power output transformer is handmade. Optimised routing and extremely low noise. Package: 1 x tube amplifier. 1 x power cord.; Basic technical parameters: Rectifier: 5Z3P (Class J military level tube). Preamp tubes: 6N9P × 2 (Class J military level tube). Power tubes: EL34B × 2. Rated output power: triode connected 8 W x 2 (default), standard connection 12 W x 2. Frequency response: 20 Hz - 25 kHz. Total power consumption: 115 W. Output transformer: import Japanese Z11 0.35 mm (22 x 45/50), very important to provide sufficient power. Total harmonic distortion: 1% (1 kHz). Input sensitivity: 500 mV - 2000 mV. Input impedance: 100 KΩ. Output impedance: 4Ω, 8Ω, suit for about 10-100w 88db (>=) speakers SNR: 88 dB. Dimensions (W x H x D): 380 x 160 x 230 mm. Weight: about 9 kg. Product technology and materials All tubes are military level. Rectifier and voltage tube are Seventies Class J military level tube. Special HIFI levels capacitors: German WIMA red grade fever no electrodes capacity. Cathode capacity: Philips audio-specific. All high-precision metal film resistors rings. CLC filter inductor. Power output transformer is handmade. Optimised routing and extremely low noise. Package: 1 x tube amplifier. 1 x power cord.

Product images are illustrative

Product images are for illustrative purposes only, so the information they contain may differ from the product itself. Colors, notes, parameters, sizes, dimensions, functions, and/or any other characteristics of original products may differ from their actual appearance, so please refer to the product description in the product specifications. If you have any questions, please clarify by writing in an e-mail or by filling in the comments window when placing an order.
