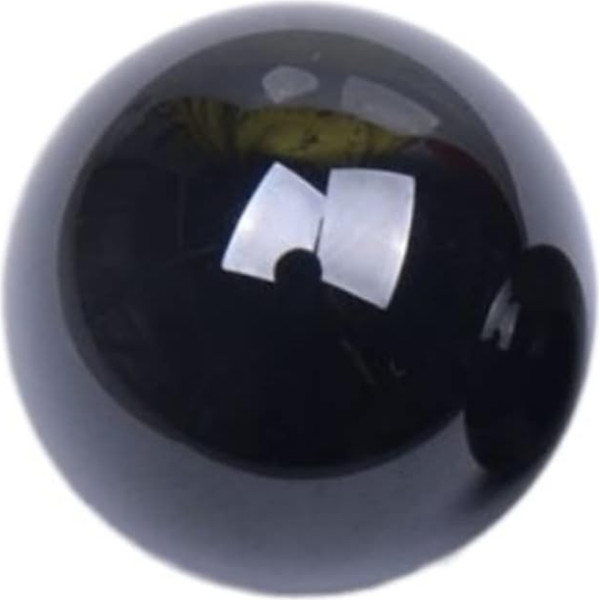

SUOFEILAIMU 1 PC Si3N4 Loose Ceramic Balls 13.494 14.288 15.081 15.875 16 16.669 17.463 18.26 mm Silicone Nitride Precision Ball (Size: 18.26 mm) )

Availability: Delivery time 3-10 working days Availability 10

ID: 6854192

Product Code: ANEB08YJHR3LVT

77.03€

(Ex Tax: 63.66€)

Informacija

Description

Product images are illustrative

Product conformity check

Related products

Description

Model number: 13.494 mm, 14.288 mm, 15.081 mm, 15.875 mm, 16 mm, 16.669 mm, 17.463 mm, 18.26 mm Torque capacity: inch 13/32 inch 7/16 inch 29/64 inch 15/32 inch 31/64 inch 1/2 inch Material: ceramic; coatings: Si3N4 Surface roughness: Ra 0.05 Structure: Loose Ceramic Ball › See more product details; Product description Silicon nitride ceramic balls Description: Silicon nitride (Si3N4) ceramic balls are made of a new material suitable for applications where high loads, high speeds and extreme temperatures are factors. Long service life and the need for minimal lubrication make this material suitable for extreme applications. Silicon nitride is non-porous , not magnetic, Non-corrosive, lighter than steel and, in ball shape, is harder than steel. Since ceramic balls are non-porous, they are virtually friction-free and are able to spin faster than steel balls. Their features are shown as follows: 1. High corrosion resistance, which means they can also be used in strong acid, strong alkali and sea water. 2. High temperature resistance. Si3N4 ceramic balls remain the same strength and hardness even in 1100 °C. 3. Electrical insulation, non-magnetic, they can also be used in magnetic domain. 4. Si3N4 ceramic balls have a low density of 3.26 g/cm3. It is about 60% lighter than steel balls, which extremely reduce the centrifugal force on the groove to effectively reduce wear. 5. High stiffness and strength. Compared with bearing steel, ceramic Si3N4 is double higher hardness and higher half of the elasticity module value. 6. The thermal expansion coefficient of Si3N4 is 3.2 × 10-6 / K. It is almost 25% of the bearing steel, resulting in good thermal shock resistance. 7. The self-lubrication of Si3N4 ceramic ball bearings can help to solve the contamination and uncomfortable caused by oilers, it can also be used in a vacuum and high temperature conditions. 8. Low thermal conductivity. Areas of application: High-precision ceramic bearings, high temperature bearings, vacuum bearings, non-magnetic bearings, chemical pumps, high temperature pumps, valve balls ceramic balls and to measure.; Product description Silicon nitride ceramic balls Description: Silicon nitride (Si3N4) ceramic balls are made of a new material suitable for applications where high loads, high speeds and extreme temperatures are factors. Long service life and the need for minimal lubrication make this material suitable for extreme applications. Silicon nitride is non-porous , not magnetic, Non-corrosive, lighter than steel and, in ball shape, is harder than steel. Since ceramic balls are non-porous, they are virtually friction-free and are able to spin faster than steel balls. Their features are shown as follows: 1. High corrosion resistance, which means they can also be used in strong acid, strong alkali and sea water. 2. High temperature resistance. Si3N4 ceramic balls remain the same strength and hardness even in 1100 °C. 3. Electrical insulation, non-magnetic, they can also be used in magnetic domain. 4. Si3N4 ceramic balls have a low density of 3.26 g/cm3. It is about 60% lighter than steel balls, which extremely reduce the centrifugal force on the groove to effectively reduce wear. 5. High stiffness and strength. Compared with bearing steel, ceramic Si3N4 is double higher hardness and higher half of the elasticity module value. 6. The thermal expansion coefficient of Si3N4 is 3.2 × 10-6 / K. It is almost 25% of the bearing steel, resulting in good thermal shock resistance. 7. The self-lubrication of Si3N4 ceramic ball bearings can help to solve the contamination and uncomfortable caused by oilers, it can also be used in a vacuum and high temperature conditions. 8. Low thermal conductivity. Areas of application: High-precision ceramic bearings, high temperature bearings, vacuum bearings, non-magnetic bearings, chemical pumps, high temperature pumps, valve balls ceramic balls and to measure.; Silicon nitride ceramic balls Description: Silicon nitride (Si3N4) ceramic balls are made of a new material suitable for applications where high loads, high speeds and extreme temperatures are factors. Long service life and the need for minimal lubrication make this material suitable for extreme applications. Silicon nitride is non-porous , not magnetic, Non-corrosive, lighter than steel and, in ball shape, is harder than steel. Since ceramic balls are non-porous, they are virtually friction-free and are able to spin faster than steel balls. Their features are shown as follows: 1. High corrosion resistance, which means they can also be used in strong acid, strong alkali and sea water. 2. High temperature resistance. Si3N4 ceramic balls remain the same strength and hardness even in 1100 °C. 3. Electrical insulation, non-magnetic, they can also be used in magnetic domain. 4. Si3N4 ceramic balls have a low density of 3.26 g/cm3. It is about 60% lighter than steel balls, which extremely reduce the centrifugal force on the groove to effectively reduce wear. 5. High stiffness and strength. Compared with bearing steel, ceramic Si3N4 is double higher hardness and higher half of the elasticity module value. 6. The thermal expansion coefficient of Si3N4 is 3.2 × 10-6 / K. It is almost 25% of the bearing steel, resulting in good thermal shock resistance. 7. The self-lubrication of Si3N4 ceramic ball bearings can help to solve the contamination and uncomfortable caused by oilers, it can also be used in a vacuum and high temperature conditions. 8. Low thermal conductivity. Areas of application: High-precision ceramic bearings, high temperature bearings, vacuum bearings, non-magnetic bearings, chemical pumps, high temperature pumps, valve balls ceramic balls and to measure.
