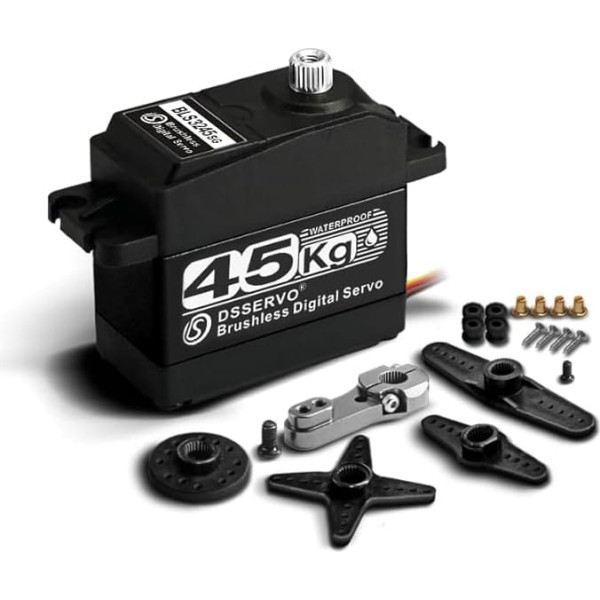

ANNIMOS 45 kg Brushless RC Servo Arduino Control Motor Digital Full Metal Gear Waterproof

Delivery time 3-10 working days, In stock: 5
ID: 7016034
Product Code: ANEB0DHL365NQT

93.76€
(Ex Tax: 77.49€)


Description
Fast / strong / incredibly precise maximum torque of 49 kg-cm (680 oz-in) and speeds up to 0.1 sec/60° (8.4 V) Waterproof IP67, brushless, digital DURABLE The heavy duty metal gear ensures long lasting performance. VERSATILE Compatible with most RC models, including cars, trucks, boats and airplanes. Dimensions: 40 x 20 x 37.5 mm (1.57 x 0.79 x 1.48 inches), suitable for 1/8 1/10 1/12 RCs › See more product details; Product description Product description Product specification: Suitable for: for 1/8 1/10 1/12 scale RC cars, trucks ★Motor type: Brushless motor Gear type: stainless steel. Spline: 25 teeth. Gear ratio: 361. Bearing: double bearing. ★Waterproof performance: IP67. CE / RoHs: yes. Connection cable: 17.7 inches (450 mm). Size: 1.57 x 0.79 x 1.48 inches (40 x 20 x 37.5 mm). Weight: 2.12 oz (60 g). Electrical specification: Operating voltage range: 5-8.4 V. Operating speed at idle (4.8 V): 0.15 sec/60°. Operating speed at idle (6 V): 0.13 sec/60°. Operating speed at idle (7.4 V): 0.11 sec/60°. ★Operating speed at idle (8.4 V): 0.1 sec/60°. Holding torque when blocked (4.8 V): 31 kg (430 oz-in) Tilting moment when blocking (6 V): 36 kg (499.9 oz-in) Locking torque (7.4 V): 43 kg.cm (597 oz-in) ★Stable torque when locked (8.4 V): 49 kg.cm (680 oz). Current consumption when blocked (4.8 V): 3.2 A. Overdraft current when blocked (6V): 4A. Current at a standstill at 7.4 V: 5.2 A. Current when blocked (8.4 V): 6.2 A. No-load current at standstill (4.8/6/7.4/8.4V): 5mA. Specification of control: Control system: PWM (pulse width modification). Pulse width range: 500-2500μsec. Neutral position: 1500μsec. Running level: 270° (at 500-2500μsec). Dead zone width: 2μsec. Operating frequency: 50-330Hz. Rotation direction: counterclockwise (at 1500-2500μsec). Applicable environmental conditions: Storage temperature range: -30°C ~ 80°C. Operating temperature range: -25°C ~ 70°C. Packing list: 1 x BLS3245 45 kg servo (270°). 1 x 25T adjustable aluminium horn. 1 x accessory kit (as shown in the picture) Safety Warning For external use only; Product description Product description Product specification: Suitable for: for 1/8 1/10 1/12 scale RC cars, trucks ★Motor type: Brushless motor Gear type: stainless steel. Spline: 25 teeth. Gear ratio: 361. Bearing: double bearing. ★Waterproof performance: IP67. CE / RoHs: yes. Connection cable: 17.7 inches (450 mm). Size: 1.57 x 0.79 x 1.48 inches (40 x 20 x 37.5 mm). Weight: 2.12 oz (60 g). Electrical specification: Operating voltage range: 5-8.4 V. Operating speed at idle (4.8 V): 0.15 sec/60°. Operating speed at idle (6 V): 0.13 sec/60°. Operating speed at idle (7.4 V): 0.11 sec/60°. ★Operating speed at idle (8.4 V): 0.1 sec/60°. Holding torque when blocked (4.8 V): 31 kg (430 oz-in) Tilting moment when blocking (6 V): 36 kg (499.9 oz-in) Locking torque (7.4 V): 43 kg.cm (597 oz-in) ★Stable torque when locked (8.4 V): 49 kg.cm (680 oz). Current consumption when blocked (4.8 V): 3.2 A. Overdraft current when blocked (6V): 4A. Current at a standstill at 7.4 V: 5.2 A. Current when blocked (8.4 V): 6.2 A. No-load current at standstill (4.8/6/7.4/8.4V): 5mA. Specification of control: Control system: PWM (pulse width modification). Pulse width range: 500-2500μsec. Neutral position: 1500μsec. Running level: 270° (at 500-2500μsec). Dead zone width: 2μsec. Operating frequency: 50-330Hz. Rotation direction: counterclockwise (at 1500-2500μsec). Applicable environmental conditions: Storage temperature range: -30°C ~ 80°C. Operating temperature range: -25°C ~ 70°C. Packing list: 1 x BLS3245 45 kg servo (270°). 1 x 25T adjustable aluminium horn. 1 x accessory kit (as shown in the picture) Safety Warning For external use only; Product description Product specification: Suitable for: for 1/8 1/10 1/12 scale RC cars, trucks ★Motor type: Brushless motor Gear type: stainless steel. Spline: 25 teeth. Gear ratio: 361. Bearing: double bearing. ★Waterproof performance: IP67. CE / RoHs: yes. Connection cable: 17.7 inches (450 mm). Size: 1.57 x 0.79 x 1.48 inches (40 x 20 x 37.5 mm). Weight: 2.12 oz (60 g). Electrical specification: Operating voltage range: 5-8.4 V. Operating speed at idle (4.8 V): 0.15 sec/60°. Operating speed at idle (6 V): 0.13 sec/60°. Operating speed at idle (7.4 V): 0.11 sec/60°. ★Operating speed at idle (8.4 V): 0.1 sec/60°. Holding torque when blocked (4.8 V): 31 kg (430 oz-in) Tilting moment when blocking (6 V): 36 kg (499.9 oz-in) Locking torque (7.4 V): 43 kg.cm (597 oz-in) ★Stable torque when locked (8.4 V): 49 kg.cm (680 oz). Current consumption when blocked (4.8 V): 3.2 A. Overdraft current when blocked (6V): 4A. Current at a standstill at 7.4 V: 5.2 A. Current when blocked (8.4 V): 6.2 A. No-load current at standstill (4.8/6/7.4/8.4V): 5mA. Specification of control: Control system: PWM (pulse width modification). Pulse width range: 500-2500μsec. Neutral position: 1500μsec. Running level: 270° (at 500-2500μsec). Dead zone width: 2μsec. Operating frequency: 50-330Hz. Rotation direction: counterclockwise (at 1500-2500μsec). Applicable environmental conditions: Storage temperature range: -30°C ~ 80°C. Operating temperature range: -25°C ~ 70°C. Packing list: 1 x BLS3245 45 kg servo (270°). 1 x 25T adjustable aluminium horn. 1 x accessory kit (as shown in the picture) Safety Warning For external use only
