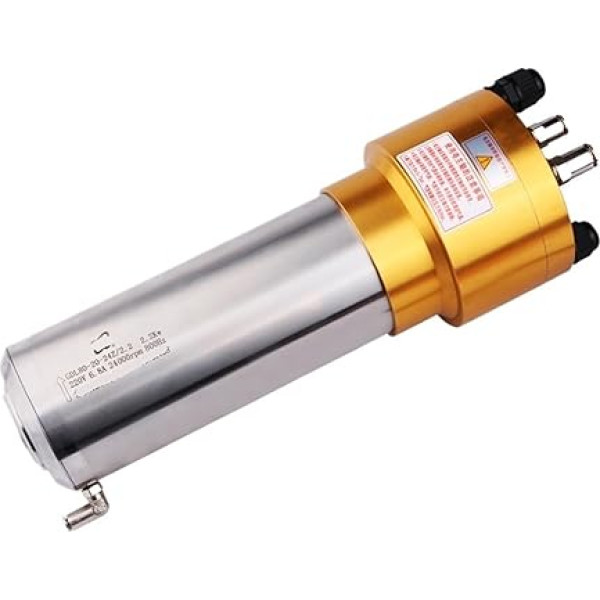

2.2 KW ATC Water-Cooled Spindle ISO20 AC220V 800Hz 80MM NPN PNP(PNP, 2.2kw 24000rpm 220V)

Delivery time 3-10 working days, In stock: 5
ID: 7661176
Product Code: ANEB0FK1Q95DYT

12,917.69€
(Ex Tax: 10,675.78€)


Description
drive shafts › See more product details; Product description drive shafts 2.2kW automatic tool change spindle upgrade 1: Power line: three-colour cable connected with U, V, W phase/yellow cable and green cable, grounded temperature control line 110℃ thermistor two phases connected with temperature control protection. 2: Cooling water supply: water pump head 8 m. 3: Dust extraction pressure for reversal poles: 0.2-0.pa (6/4 hose). 4: Number of proximity switches: pole mounted and pole release NPN (normally open) Proximity switch wiring method: brown wire connected to +24VDC, blue wire connected to 0VDC Signal load connection connected to +24 VDC / the other end connected to black cable 5:Gastight Pressure: 0.1-0.2MPa (4/2 hose) 6: Generate cooling water: (ends 2 and 6 are equipped with 8/6 hoses) 7: Cylinder Air Intake Pressure: 0.65MPa (6/4 Hose) Model: GDL80-20-24Z/2.2. Speed: 24000 rpm. Material: stainless steel outer sheath, copper coil Frequency: 800 Hz. Power: 2.2 kW. Torque: 0.72 Nm. Shaft end connection: S020 mount Diameter: 80 mm. Tapered hole circulation: 2µm. Voltage: 220 V. Cooling method: water cooling Lubrication method: Grease Stock number: 2*HY6005C/P4, 1*SM6004C/P4 Number of poles: 4P. Number of phases: 3. Direction of rotation: counterclockwise from shaft end. Tool holder: IS020 (imitation crystal is recommended) Blind rivets: IS020-15° (imitation crystal is recommended). Weight: 8 kg. Fitted with a standard ISO20 taper bore; Product description drive shafts 2.2kW automatic tool change spindle upgrade 1: Power line: three-colour cable connected with U, V, W phase/yellow cable and green cable, grounded temperature control line 110℃ thermistor two phases connected with temperature control protection. 2: Cooling water supply: water pump head 8 m. 3: Dust extraction pressure for reversal poles: 0.2-0.pa (6/4 hose). 4: Number of proximity switches: pole mounted and pole release NPN (normally open) Proximity switch wiring method: brown wire connected to +24VDC, blue wire connected to 0VDC Signal load connection connected to +24 VDC / the other end connected to black cable 5:Gastight Pressure: 0.1-0.2MPa (4/2 hose) 6: Generate cooling water: (ends 2 and 6 are equipped with 8/6 hoses) 7: Cylinder Air Intake Pressure: 0.65MPa (6/4 Hose) Model: GDL80-20-24Z/2.2. Speed: 24000 rpm. Material: stainless steel outer sheath, copper coil Frequency: 800 Hz. Power: 2.2 kW. Torque: 0.72 Nm. Shaft end connection: S020 mount Diameter: 80 mm. Tapered hole circulation: 2µm. Voltage: 220 V. Cooling method: water cooling Lubrication method: Grease Stock number: 2*HY6005C/P4, 1*SM6004C/P4 Number of poles: 4P. Number of phases: 3. Direction of rotation: counterclockwise from shaft end. Tool holder: IS020 (imitation crystal is recommended) Blind rivets: IS020-15° (imitation crystal is recommended). Weight: 8 kg. Fitted with a standard ISO20 taper bore; drive shafts 2.2kW automatic tool change spindle upgrade 1: Power line: three-colour cable connected with U, V, W phase/yellow cable and green cable, grounded temperature control line 110℃ thermistor two phases connected with temperature control protection. 2: Cooling water supply: water pump head 8 m. 3: Dust extraction pressure for reversal poles: 0.2-0.pa (6/4 hose). 4: Number of proximity switches: pole mounted and pole release NPN (normally open) Proximity switch wiring method: brown wire connected to +24VDC, blue wire connected to 0VDC Signal load connection connected to +24 VDC / the other end connected to black cable 5:Gastight Pressure: 0.1-0.2MPa (4/2 hose) 6: Generate cooling water: (ends 2 and 6 are equipped with 8/6 hoses) 7: Cylinder Air Intake Pressure: 0.65MPa (6/4 Hose) Model: GDL80-20-24Z/2.2. Speed: 24000 rpm. Material: stainless steel outer sheath, copper coil Frequency: 800 Hz. Power: 2.2 kW. Torque: 0.72 Nm. Shaft end connection: S020 mount Diameter: 80 mm. Tapered hole circulation: 2µm. Voltage: 220 V. Cooling method: water cooling Lubrication method: Grease Stock number: 2*HY6005C/P4, 1*SM6004C/P4 Number of poles: 4P. Number of phases: 3. Direction of rotation: counterclockwise from shaft end. Tool holder: IS020 (imitation crystal is recommended) Blind rivets: IS020-15° (imitation crystal is recommended). Weight: 8 kg. Fitted with a standard ISO20 taper bore
