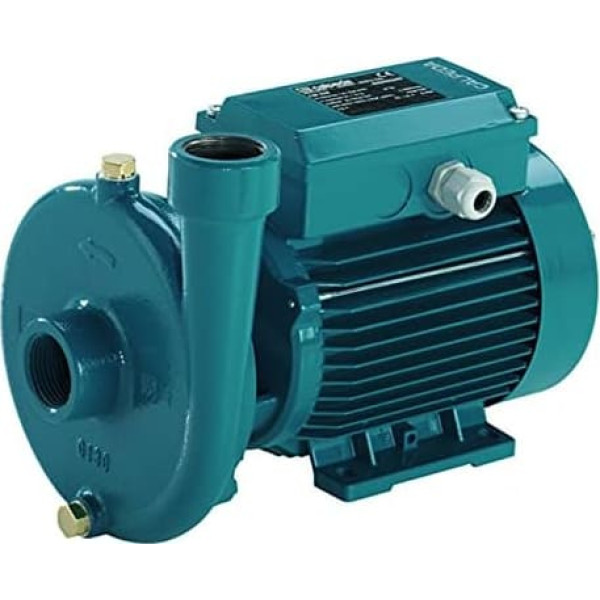

Calpeda CM4 Water Pump 0.75kW Open Wheel 3.6 to 15m3/h Single Phase 220V

Availability: Delivery time 3-10 working days Availability 10

ID: 5505360

Product Code: ANEB088NN8QP6T

784.37€

(Ex Tax: 648.24€)

Informacija

Description

Product images are illustrative

Product conformity check

Related products

Description

Product description This Calpeda water pump is ideal for agricultural and industrial applications for liquids containing impurities etc. Equipped with a single-phase induction power supply 220V, this open wheel pump is ideal for a suction height of up to 8 metres and a flow between 3.6 to 15 m3/h. Usage The Calpeda Cm single-phase centrifugal water pump is ideal for agricultural and industrial applications for liquids containing impurities or emulsions. Calpeda is recommended for this water pump to use up to 90°C. The ambient temperature of the room where this surface pump is to be installed must not exceed 40°C. Design: The CALPEDA Cm open wheel pump consists of a pump body and a cast iron lantern, which can accept an operating pressure of up to 6 bar. The turbine is made of brass. The 2-pin induction motor rotates at a speed of 2900 rpm, with protection class IP54, class F and continuous operation. With this single-phase 220 V motor, lipsotherm and capacitor are integrated. The clutch shaft between turbine and induction motor is made of stainless steel. The standard mechanical insert is made of hard carbon and ceramic and allows for a good seal between the pump body and induction motor. For a longer life of the water pump, this filling can be replaced.; Product description This Calpeda water pump is ideal for agricultural and industrial applications for liquids containing impurities etc. Equipped with a single-phase induction power supply 220V, this open wheel pump is ideal for a suction height of up to 8 metres and a flow between 3.6 to 15 m3/h. Usage The Calpeda Cm single-phase centrifugal water pump is ideal for agricultural and industrial applications for liquids containing impurities or emulsions. Calpeda is recommended for this water pump to use up to 90°C. The ambient temperature of the room where this surface pump is to be installed must not exceed 40°C. Design: The CALPEDA Cm open wheel pump consists of a pump body and a cast iron lantern, which can accept an operating pressure of up to 6 bar. The turbine is made of brass. The 2-pin induction motor rotates at a speed of 2900 rpm, with protection class IP54, class F and continuous operation. With this single-phase 220 V motor, lipsotherm and capacitor are integrated. The clutch shaft between turbine and induction motor is made of stainless steel. The standard mechanical insert is made of hard carbon and ceramic and allows for a good seal between the pump body and induction motor. For a longer life of the water pump, this filling can be replaced.; This Calpeda water pump is ideal for agricultural and industrial applications for liquids containing impurities etc. Equipped with a single-phase induction power supply 220V, this open wheel pump is ideal for a suction height of up to 8 metres and a flow between 3.6 to 15 m3/h. Usage The Calpeda Cm single-phase centrifugal water pump is ideal for agricultural and industrial applications for liquids containing impurities or emulsions. Calpeda is recommended for this water pump to use up to 90°C. The ambient temperature of the room where this surface pump is to be installed must not exceed 40°C. Design: The CALPEDA Cm open wheel pump consists of a pump body and a cast iron lantern, which can accept an operating pressure of up to 6 bar. The turbine is made of brass. The 2-pin induction motor rotates at a speed of 2900 rpm, with protection class IP54, class F and continuous operation. With this single-phase 220 V motor, lipsotherm and capacitor are integrated. The clutch shaft between turbine and induction motor is made of stainless steel. The standard mechanical insert is made of hard carbon and ceramic and allows for a good seal between the pump body and induction motor. For a longer life of the water pump, this filling can be replaced.
