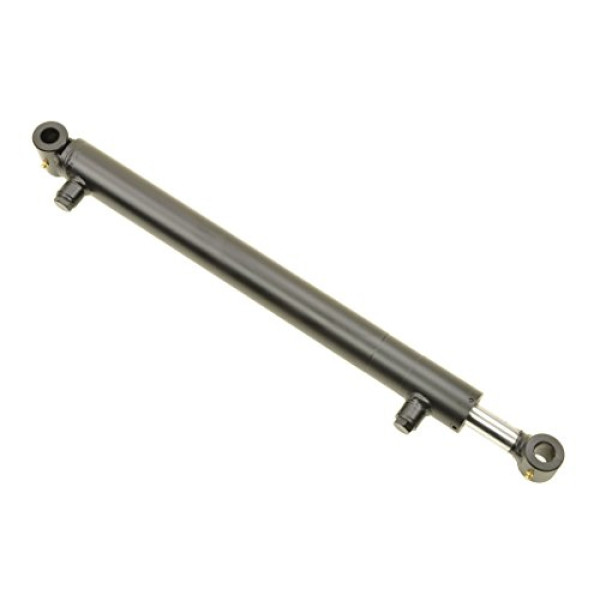

Pro-Lift-Montagetechnik 2.2t Hydraulic Cylinder Double-Acting Stroke 200 mm Minimum Length 410 mm 00943

Hydraulic cylinder double-acting: 2.2t pressure load, 1.2t tensile force Stroke/piston travel: 200 mm Length when retracted from eye to eye: 410 mm For locksmiths, fitters, welders, workshops, industry as well as hydraulic work of all kinds Double-acting universal cylinders are designed for work where you need to push or pull. They can be used for all work where high power is important, such as For example, when supporting, aligning lifting, straightening welded structures, pressing out shafts, cradles as well as for many universal assembly and repair work.; Product description Double-acting hydraulic cylinder, 2270 kg pressure force, max. Stroke 200 mm - 00943 Type: 1.5 inch x 8 inch. Technical data: Operating pressure: 200 bar. Max. Pressure load: 2270 kg. Max. Pull force: 1260 kg. Length when retracted from eye to eye: 410 mm. Stroke: 200 mm. Piston diameter in housing: 38 mm. Piston rod diameter: 25 mm. Total casing diameter: 48 mm. Both connection threads for the hydraulic lines: 3/8 inch BSP. Diameter of the two fixing eyes: 19 mm. Weight: 4 kg. Shipping Weight:13.2 lbs If you have any questions, we are available by phone at 02162/353967. Self-pick-up is possible by telephone arrangement.; Product description Double-acting hydraulic cylinder, 2270 kg pressure force, max. Stroke 200 mm - 00943 Type: 1.5 inch x 8 inch. Technical data: Operating pressure: 200 bar. Max. Pressure load: 2270 kg. Max. Pull force: 1260 kg. Length when retracted from eye to eye: 410 mm. Stroke: 200 mm. Piston diameter in housing: 38 mm. Piston rod diameter: 25 mm. Total casing diameter: 48 mm. Both connection threads for the hydraulic lines: 3/8 inch BSP. Diameter of the two fixing eyes: 19 mm. Weight: 4 kg. Shipping Weight:13.2 lbs If you have any questions, we are available by phone at 02162/353967. Self-pick-up is possible by telephone arrangement.; Double-acting hydraulic cylinder, 2270 kg pressure force, max. Stroke 200 mm - 00943 Type: 1.5 inch x 8 inch. Technical data: Operating pressure: 200 bar. Max. Pressure load: 2270 kg. Max. Pull force: 1260 kg. Length when retracted from eye to eye: 410 mm. Stroke: 200 mm. Piston diameter in housing: 38 mm. Piston rod diameter: 25 mm. Total casing diameter: 48 mm. Both connection threads for the hydraulic lines: 3/8 inch BSP. Diameter of the two fixing eyes: 19 mm. Weight: 4 kg. Shipping Weight:13.2 lbs If you have any questions, we are available by phone at 02162/353967. Self-pick-up is possible by telephone arrangement.
