Pro-Lift-Tools Hydraulic Cylinder Double Acting 2.2 t Pressure Load Piston Stroke 760 mm Hydraulic Pump 1.2 t Pulling Force Working Cylinder 2.2 t Lifting Lifting 1.2 t

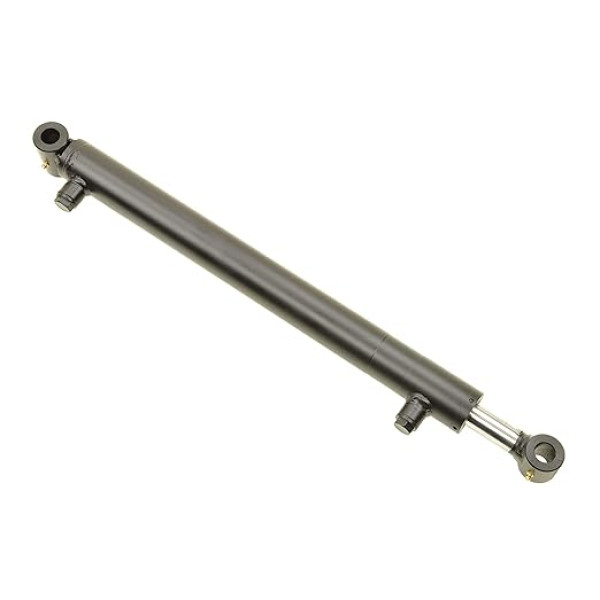

Hydraulic cylinder: 2.2 tonnes pressure load, 1.2 tonnes pulling force Stroke / piston path: 200 mm. Length when retracted from eye to eye: 410 mm For locksmiths, assemblers, welders, workshops, industry and hydraulic work of all kinds. Double-acting universal cylinders are designed for work where you need to press or pull They can be used for all work where high power is important, such as For supporting, aligning, lifting, straightening welding structures, pressing waves, weighing and many universal assembly and repair work.; Product description Double acting hydraulic cylinder, 2270 kg pressure,max. Hub 200 mm - 00943 Type: 1.5 inch x 8 inch. Technical data: Operating pressure: 200 bar. Max. Pressure load: 2270 kg. Max. Pull strength: 1260 kg Length when retracted from eye to eye: 410 mm Lift: 200 mm. Piston diameter in case: 38 mm. Piston rod diameter: 25 mm. Case diameter: 48 mm. Both connection threads for hydraulic cables: 3/8 inch BSP Diameter of the two mounting eyes: 19 mm. Weight: 4 kg Delivery weight: 6 kg If you have any questions, please call 02162/353967. Self-pick-up is possible upon telephone agreement.; Product description Double acting hydraulic cylinder, 2270 kg pressure,max. Hub 200 mm - 00943 Type: 1.5 inch x 8 inch. Technical data: Operating pressure: 200 bar. Max. Pressure load: 2270 kg. Max. Pull strength: 1260 kg Length when retracted from eye to eye: 410 mm Lift: 200 mm. Piston diameter in case: 38 mm. Piston rod diameter: 25 mm. Case diameter: 48 mm. Both connection threads for hydraulic cables: 3/8 inch BSP Diameter of the two mounting eyes: 19 mm. Weight: 4 kg Delivery weight: 6 kg If you have any questions, please call 02162/353967. Self-pick-up is possible upon telephone agreement.; Double acting hydraulic cylinder, 2270 kg pressure,max. Hub 200 mm - 00943 Type: 1.5 inch x 8 inch. Technical data: Operating pressure: 200 bar. Max. Pressure load: 2270 kg. Max. Pull strength: 1260 kg Length when retracted from eye to eye: 410 mm Lift: 200 mm. Piston diameter in case: 38 mm. Piston rod diameter: 25 mm. Case diameter: 48 mm. Both connection threads for hydraulic cables: 3/8 inch BSP Diameter of the two mounting eyes: 19 mm. Weight: 4 kg Delivery weight: 6 kg If you have any questions, please call 02162/353967. Self-pick-up is possible upon telephone agreement.
