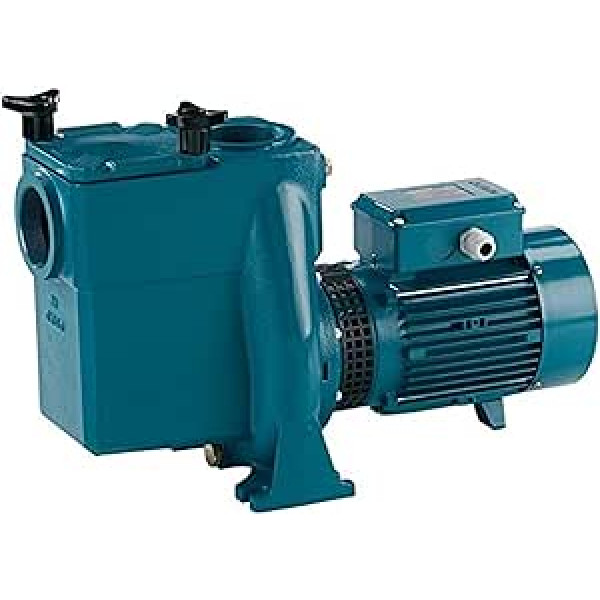

Selbstansaug End/12D/A Centrifugal Pump NMP50 3kW 4HP Three Phase 400 V Calpeda

Calpeda NMP Selbstansaug end centrifugal pump with pre-filter NMP 50/12D, a › See more product details; Product description Code: 60D00862000Model: NMP 50/12D/APower supply: three phase 400 V 50 Hz3 KwHP: 4Pump performance Q L/min: 315 ÷ 1100Pump head height: 18 ÷ 7Suction side: 2.1/2 inchPressure Side: 2.1/2 inchPower cable: does notPumpenge at home – Grey cast ironWheel: Grey Cast IronMotor efficiency class: IE2NMP Selbstansaug end centrifugal pump with pre-filter Construction Selbstansaug end centrifugal pump with pre-filter in Log construction method. NMP: construction with Pumpengehause and lantern made from Graugus. B-NMP: construction with Pumpengehause and lantern made from bronze. (the pumps are completely painted). Areas of application Water Umwalzung in swimming pool filter systems. For pure or slightly dirty water with a swimming Korpern. Operating conditions Medium temperature up to 60 °C Ambient temperature up to 40 °C Vakuummetrische suction High Up to 7. Hochstz, lower siger pump end pressure 6 bar. Continuous operation. Motor 2 pin induction motor, 50 Hz (N = 2900 1/min). NMP: Three (Rotary current) 230/400 V ±?10% to 3 kW – 400/690 V ±?10% from 4 to 11 kW. Nmpm: Single phase (AC) 230 V ±?10% with thermostatic switch. Insulation Class F. Type of protection IP 54. Efficiency Class IE2 For Rotary Power engines of 0.75 kW. Construction In accordance with EN 60034 1; en 60034 – 30; en 60335, EN 60335 – 2 to 8. Sonderausfuhrungen on request Other voltages. Frequency 60 Hz. Type of protection: IP 55 Other Mechanical Seal. Hohere Medium of ambient temperatures.; Product description Code: 60D00862000Model: NMP 50/12D/APower supply: three phase 400 V 50 Hz3 KwHP: 4Pump performance Q L/min: 315 ÷ 1100Pump head height: 18 ÷ 7Suction side: 2.1/2 inchPressure Side: 2.1/2 inchPower cable: does notPumpenge at home – Grey cast ironWheel: Grey Cast IronMotor efficiency class: IE2NMP Selbstansaug end centrifugal pump with pre-filter Construction Selbstansaug end centrifugal pump with pre-filter in Log construction method. NMP: construction with Pumpengehause and lantern made from Graugus. B-NMP: construction with Pumpengehause and lantern made from bronze. (the pumps are completely painted). Areas of application Water Umwalzung in swimming pool filter systems. For pure or slightly dirty water with a swimming Korpern. Operating conditions Medium temperature up to 60 °C Ambient temperature up to 40 °C Vakuummetrische suction High Up to 7. Hochstz, lower siger pump end pressure 6 bar. Continuous operation. Motor 2 pin induction motor, 50 Hz (N = 2900 1/min). NMP: Three (Rotary current) 230/400 V ±?10% to 3 kW – 400/690 V ±?10% from 4 to 11 kW. Nmpm: Single phase (AC) 230 V ±?10% with thermostatic switch. Insulation Class F. Type of protection IP 54. Efficiency Class IE2 For Rotary Power engines of 0.75 kW. Construction In accordance with EN 60034 1; en 60034 – 30; en 60335, EN 60335 – 2 to 8. Sonderausfuhrungen on request Other voltages. Frequency 60 Hz. Type of protection: IP 55 Other Mechanical Seal. Hohere Medium of ambient temperatures.; Code: 60D00862000Model: NMP 50/12D/APower supply: three phase 400 V 50 Hz3 KwHP: 4Pump performance Q L/min: 315 ÷ 1100Pump head height: 18 ÷ 7Suction side: 2.1/2 inchPressure Side: 2.1/2 inchPower cable: does notPumpenge at home – Grey cast ironWheel: Grey Cast IronMotor efficiency class: IE2NMP Selbstansaug end centrifugal pump with pre-filter Construction Selbstansaug end centrifugal pump with pre-filter in Log construction method. NMP: construction with Pumpengehause and lantern made from Graugus. B-NMP: construction with Pumpengehause and lantern made from bronze. (the pumps are completely painted). Areas of application Water Umwalzung in swimming pool filter systems. For pure or slightly dirty water with a swimming Korpern. Operating conditions Medium temperature up to 60 °C Ambient temperature up to 40 °C Vakuummetrische suction High Up to 7. Hochstz, lower siger pump end pressure 6 bar. Continuous operation. Motor 2 pin induction motor, 50 Hz (N = 2900 1/min). NMP: Three (Rotary current) 230/400 V ±?10% to 3 kW – 400/690 V ±?10% from 4 to 11 kW. Nmpm: Single phase (AC) 230 V ±?10% with thermostatic switch. Insulation Class F. Type of protection IP 54. Efficiency Class IE2 For Rotary Power engines of 0.75 kW. Construction In accordance with EN 60034 1; en 60034 – 30; en 60335, EN 60335 – 2 to 8. Sonderausfuhrungen on request Other voltages. Frequency 60 Hz. Type of protection: IP 55 Other Mechanical Seal. Hohere Medium of ambient temperatures.
